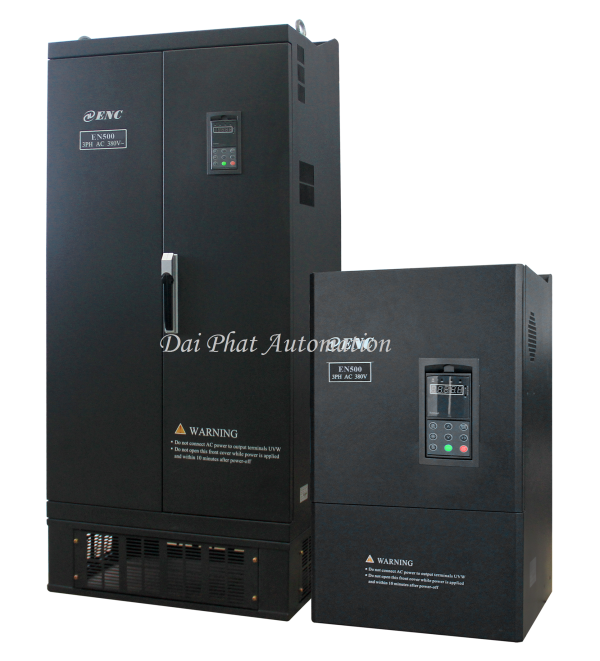

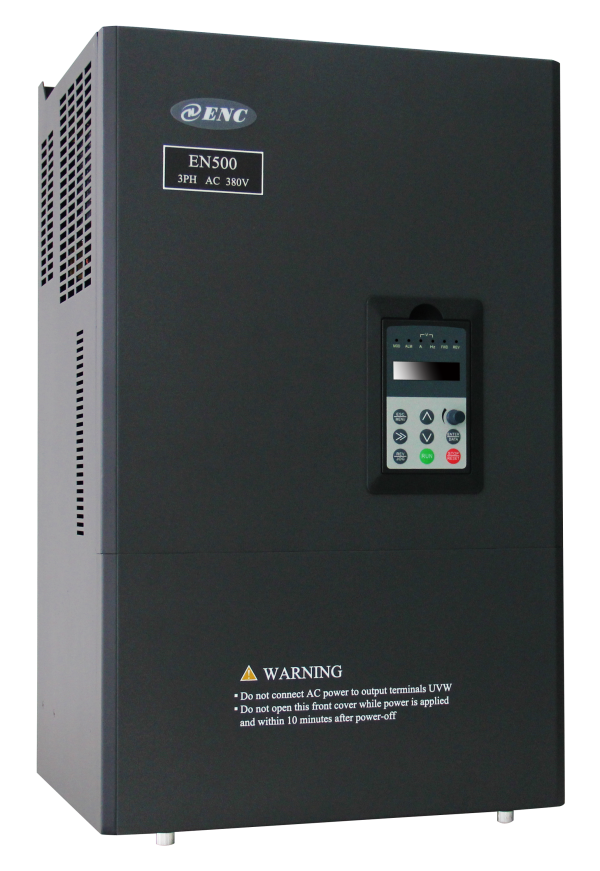

High power inverter EN500

Giá: Liên hệ
Product code EN500 Category:

Application of 32-bit DSP hardware platform (digital signal processor), advanced control algorithms, PG closed-loop vector control and vector sensor control, both in vector-speed and torque control of torque. It can quickly limit the current impact, and can be used extensively in production. This controller has high precision control, fast response, low frequency characteristics, intelligent detection and protection, has many network functions,  peripheral bus extension,  terminal extension, relay extension , analog extension and so on

Contact Buy (+84) 908 897 168
320~460V
Output
Voltage
0~380V
Frequency
0~650Hz
Over loading capacity
G type: 150% of rate current for 1 minute;
P type:120% of rated current for 1 minute.
Control performance
Control mode
vector control, PG vector control, open-loop V/F control, PG torque control
speed regulation range
1:100
Start-up torque
0.5Hz: 150% rated control
Speed fluctuation
≤±0.5%: rated synchronous speed
Frequency precisionDigital setting: max. frequency
Freq. resolution
 Analog setting
0.1% of max. frequency
Digital setting precision
under 100Hz: 0.01Hz
EXterior impulse
0.1% of max. frequency
Torque boost
Automatic torque boost; manual torque boost 0.1~12.0%
V/F curve (volt.Frequency characteristic)
Setting rated frequency at the range of 5~650Hz, by choosing constant torque, degressive torque 1, degressive torque 2, degressive torque 3, self-defined V/F total 5 kinds of curve
Accederation/ Decederation curveTwo modes: straight line acceleration and deceleration; S curve acceleration and deceleration; 15 kinds of acceleration and deceleration time, time unit ( 0.01s, 0.1s, 1s) for option, max.time for 1000 minutes
Brake
Power consumption brake
Brake unit can connect between P+ và P- outside
 DC Brake
Start, stop action for option, action frequency 0~15Hz, action current 0~100% of rate current, action time 0~30.0s
Jogjog frequency range: 0Hz~ up limit frequency, jog acceleration deceleration time 0.1~6000.0 seconds for setting
Multi-section speed run
Realized by inbuilt PLC or control terminal; with 15 section speed, each section speed with separate acceleration and decelaration  time; with inbuilt PLC can achieve reserve when power down
Inbuilt PID controller
Convenient to make closed-loop control system
Automatic energy saving run
Optimize V/F curve automatically to achieve power saving run according to the load status
Automatic voltage regulate  (AVR)
Automatically keep output voltage constant, when the power saving run according to the load status
Automatic current limitingCurrent limited automatically under run mode in avoid of inverter over-current frequently to trip
Carrier modulationModulate carrier wave automatically according to the load characteristic
Speed tracking restartmake rotating motor smoothly start without shocking
Running function
Running command specified channelKeypad specified, control terminal specified, communication specified can switch through various means
Running frequency specified channel
Main & auxiliary specified to a realize one main adjusting and one fine control. Digital specified, analog specified, pulse specified, pulse width specified, communication specified and others, which can be switched by many means at any time
Binding function
Run command channel and frequency specified channel can bind together randomly and switch synchronously
Input output characteristicDigital input channelChannel 8 for universal digital input, max. frequency 1KHz, channel 1 can be used as pulse input channel, max. Input 50KHz which can be expanded to channel 14.
Analog input channel
Channel 2 for analog input channel, AI1 can choose 4~20mA or 0~10V output, AI2 is differentialinput channel, 4~20mA or -10~10V for option, which can be expanded to channel 4 analog input
Pulse output channel
0.1~20KHZ pulse spare signal output to achieve setting frequency, output frequency and other physical quantity output
Analog output channelChannel 2 for analog signal output, AO1can choose 4~20mA or 0-10V, AO2 can choose 4~20 mA or 0~10V to achieve setting frequency, output frequency and other physical quantity  output, which can be expanded to channel 14 analog output
Unique characteristic
Rapid current limit
Limit inverter over current to the greatest point and make it run more stably
Monopulse control
Suitable for working site where need one button to control inverter start and stop. It is very simple and reliable
Fixed length control
realize fixed length control
Timing controlTiming control function: setting time range 0.1Min~ 6500.0 Min
Virtual terminal
Five group virtual input & output IO can realized simply logical control
Keypad
Keypad display
The parameter as setting frequency, output frequency, output voltage, output current can be displayed
Button lockedLock all or part of buttons
Protection function
Motor power on shot circuit test, input & output phase loss protection, over-current protection, over voltage protection, under voltage protection, over heat protection, overload protection, under load protection, relay absorption protection, terminal protection and no stop protection under power off
Environment
Application site
Indoor, no bare to sunlight, no dust, no corrosive gas, no flammable gas, no vapor, no water drop or salt etc.
Altitude
Under 1000meter. ( above 1000 meter require to reduce volume to use, output current reduce about 10% of rate current volt per 1000 meter high)
Environment temperature
-10℃~+40℃ ( enviroment temperature between 40℃~50℃, need to reduce volume or strengthen heat sink)
Environment humidity
Smaller than 95%RH,no drop condenses
Vibration
Smaller than 5.9m/s2 (0.6)
Storage temperature
-40℃~+70℃
Structure
Protection grade
IP20
Cooling mode
 forced air cooling and natural
Installation modeWall hanging and cabinet installation
